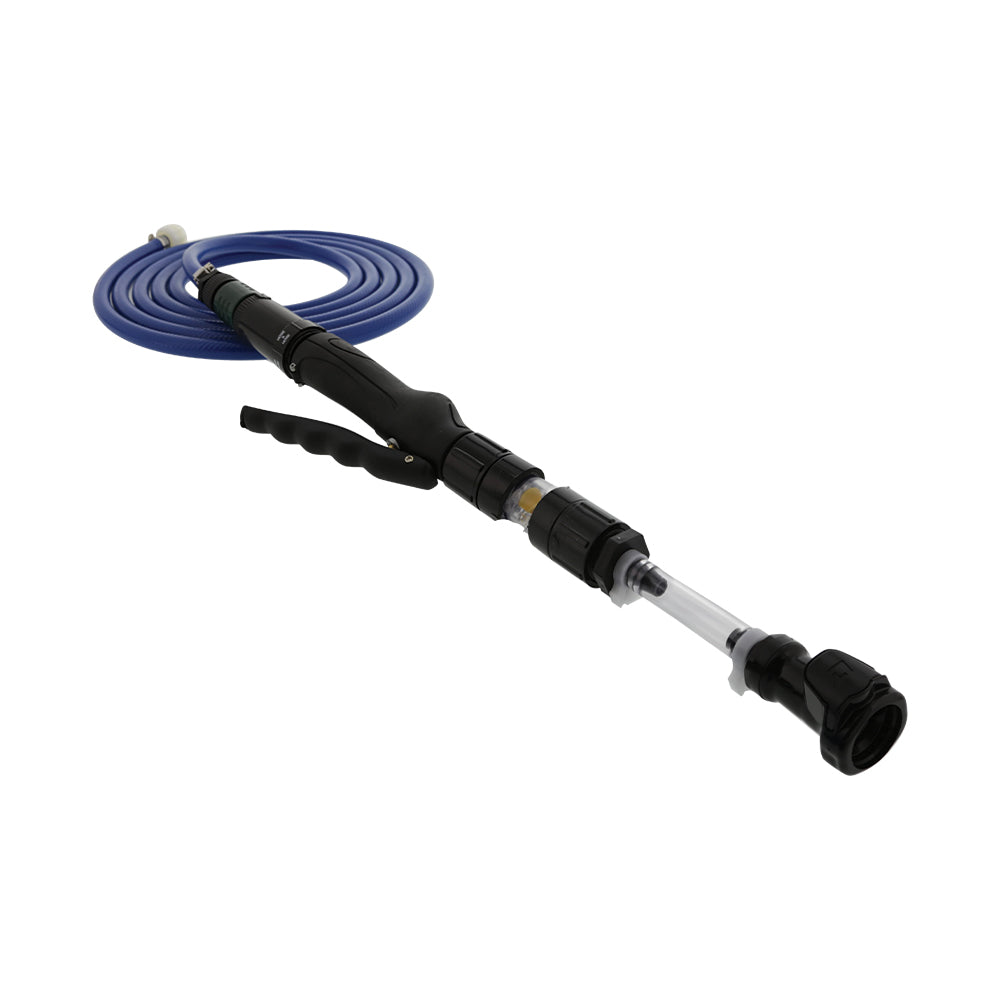

This Direct Fill Link works with low profile watering systems that have the 09FUV6 or 09FUV1 quick connects. A 12' hose is included.
Depending on water quality, the Direct Fill Link can be connected to a standard garden hose, a deionizer or an Aqua Sub cart to put water directly into the batteries. The Direct Fill Link has a built-in flow indicator and pressure regulator, reducing pressure down to 10 PSI. It can handle up to 90 PSI from the water source. Water sources with greater pressure should use a brass pressure regulator to reduce incoming pressure.
Direct Fill Links are not recommended for use with Philadelphia Scientific® injector systems or Watermaster® systems.
The Direct Fill Link is smaller, more robust, and less cumbersome to handle than traditional watering guns. The ergonomic streamlined design makes it comfortable to use.
The Direct Fill Link operates like a watering gun. Without a lock on the handle, it is safer to operate. There is no chance that the battery will continue to be filled if the user walks away while filling.
The flow indicator is encased in PVC pipe making it more robust and extremely durable.
The flow rate is fast enough for the largest batteries, yet gentle enough to fill accurately each and every time. The Direct Fill Link reduces pressure down to 10 PSI and will handle incoming pressure up to 90 PSI.
Just connect the Direct Fill Link to a standard garden hose. When filling, watch for the flow indicator to stop spinning, then disconnect it from the system.
Filter Screen
3/4" GHT to 3/8" Barb
(19 mm GHT to 10 mm Barb)
Front End Replacement for DF7F
Flow Indicator
Handle
Crimp Hose Clamp 3/8" (10 mm)
Female Quick Connect
Quick Connect Male Adapter
10 PSI Pressure Regulator
Gasket
